      1325 HEAWY STONE ENGRAVING MACHINE





















      Applicable industries:
      Stone construction, relief decoration, mold industry, advertisingindustry
      Applicable materials:
      High hardness materials such as slate,stone monument, marble,granite, tombstone, milestone, stone wooden






















       software system

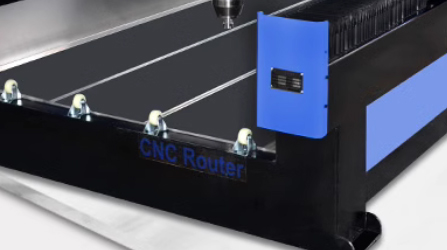

      Steel structural welding fuselage, rigidity is not deformation,work surface backing steel plate, strong strength, and the robotis well loaded.
      Compatible with various software such as Beijing Equity/。
      Wentai/CAD/TYPE3 /ARTCAM.

































      The engraving system has a breakpoint to discharging the cuirent, and can be processed in the event of a power outage orthe next day.






































       Technical Information








      Working desk size1300mm *2500mm *200mm
      Stereo engraving dimensions300mm high in diameter is 1800mm
      Repeatability<0.05mm/1000mm
      Design/ Dragon GateAluminum plate T-slot countertop + PVC, Fanggang gantry
      Bed frameThickened and widened square tube welding bed (with horseshoe)

      Run motor      		Stepper motor (optional same server/hybrid servo)

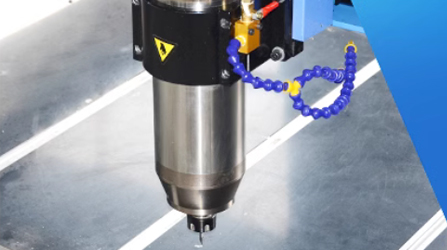

      Spindle powerWater-cooled power 2.2kw, 3.0kw, 5.5kW (optional)
      Spindle speed6000-24000R/min
      Operating Voltage220V50Hz/380V50Hz
      Run commandG code, f/s command is com
      patible
      Maximum space speed15M-Min
      Transfer methodaxis screw + square rail X-axis rack+ square rail Y-axis rack+ square rai (Y-axis dual motor)
      Control SystemNC studio/Richauto
      InverterSouthern Anhua inverter
      Rail model20/25 square rail (optional)
      Transmission systemRail+ oblique rack
      Z-axis transmission systemHigh precision ball screw
      A fixed wayClamp
      DimensionsDiferent length 3000mm wide 2600mm high 1600mm
      Total weightAbout 1000 kg
      Body colorBlack red / blue white





      Working desk size1300mm *2500mm *200mm
      Bed frame
      		Thickened and wide square tube welding bed (with horseshoe)
      Repeatability<0.05mm/1000mm
      Design/ Dragon GateAluminum plate T-slot table + PVC, square steel gantry
      Bed frameThickened and widened square tube welding bed (with horseshoe)

      Run motorStepper motor (optional same server/hybrid servo)
      Spindle powerWater-cooled power 2.2kw, 3.0kw, 5.5kW (optional)
      Spindle speed6000-24000R/min
      Operating Voltage  220V50Hz/380V50Hz
      Run command G code, f/s command is compatible
      Maximum space speed  15M-Min
      Transfer methodaxis screw + square rail X-axis rack+ square rail Y-axis rack+ square rai (Y-axis dual motor)
      Control System Macro system
      Inverter Southern Anhua inverter
      Rail model20/25 square rail (optional)
      Transmission system Rail+ oblique rack
      Z-axis transmission systemHigh precision ball screw

      A fixed wayClamp

      DimensionsDiferent length 1200mm wide 1400mm high 1600mm

      Total weightAbout 1000 kg

      Body colorBlack red / blue white
