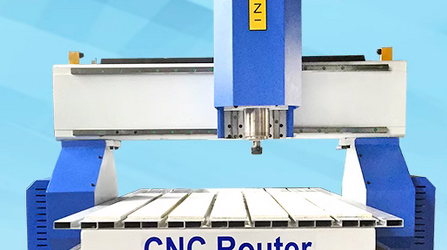

      6090 TIMBER ENGRAVING MACHINE


















      Applicable industries:

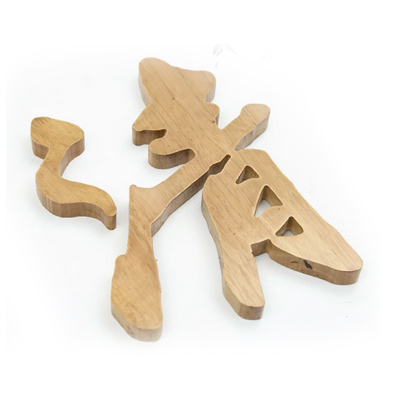

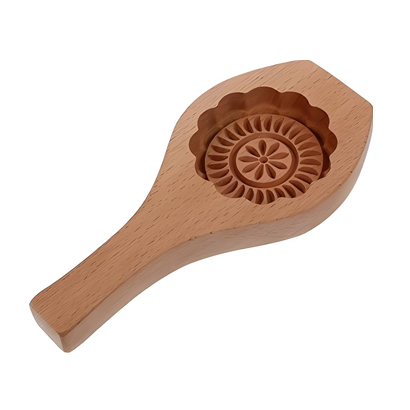

      Three-dimensional handicraft industry, woodworking, advertisingindustry,batch processing of sheet metal products industry


      Applicable materials:
      Plexiglass, PVD board, KT board, wood board, synthetic boardacrylic, metal and other materials






















       software system










      High-efficiency machining with high-power spindle point machine.
      Compatible with Beijing Jingdiao/Wentai/CAD/Type:3 Artcamand other software

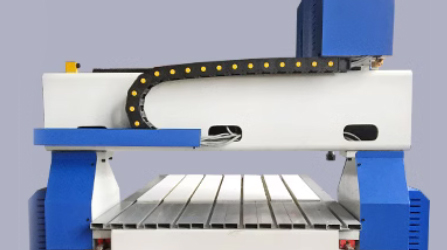

      The bed and gantry are welded with steel structure seamlessly,and the whole machine is treated with high temperature agingtreatment, which has strong rigidity and no deformation,
      The Z-axis rear-mounted triangular structure installation technology of the engraving machine and the triangular structurelavout of the guide rail greatly reduce the resonance generatedby the Z-axis, improve the service life of the guide rail slider, andimprove the engraving accuracy.






































       Technical Information








      Working desk size600mm *900mm *200mm
      Bed frame Thickened and wide square tube welding bed (with horseshoe)
      Repeatability<0.05mm/1000mm
      Design/ Dragon GateAluminum plate T-slot countertop + PVC, Fanggang gantry

      Run motor      		G code, f/s command is compatible
      Spindle powerWater-cooled power 2.2kw, 3.0kw, 5.5kW (optional)
      Spindle speed6000-24000R/min
      Operating Voltage220V50Hz/380V50Hz
      Run commandG code, f/s command is com
      patible
      Maximum space speed15M-Min
      Transfer methodaxis screw + square rail X-axis rack+ square rail Y-axis rack+ square rai (Y-axis dual motor)

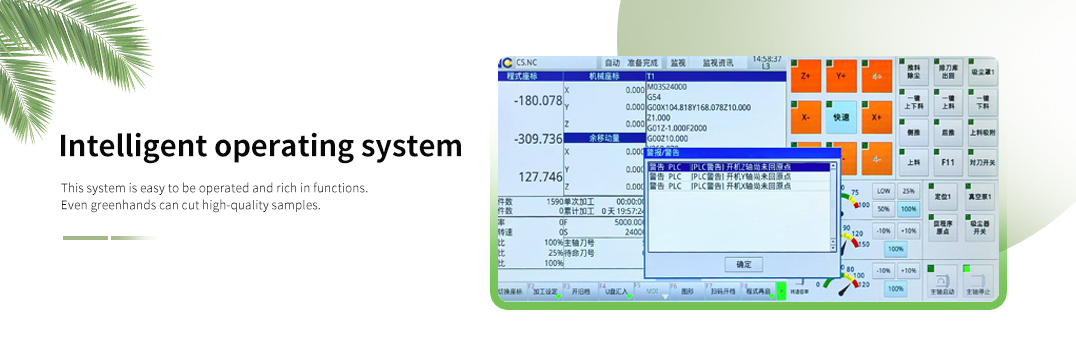

      Control SystemMacro system
      InverterSouthern Anhua inverter
      Rail modelS20/25 square rail (optional)
      Transmission systemRail+ oblique rack
      Z-axis transmission systemHigh precision ball screw
      A fixed wayPlate
      DimensionsDiferent length 1200mm wide 1400mm high 1600mm
      Total weightAbout 4000 kg
      Body colorBlack red / blue white





      Working desk size600mm *900mm *200mm
      Bed frame
      		Thickened and wide square tube welding bed (with horseshoe)
      Repeatability<0.05mm/1000mm
      Design/ Dragon GateAluminum plate T-slot countertop + PVC, Fanggang gantry
      Run motorStepper motor (optional servo mixed dress
      Spindle powerWater-cooled power 2.2kw, 3.0kw, 5.5kW (optional)
      Spindle speed6000-24000R/min
      Operating Voltage  220V50Hz/380V50Hz
      Run command G code, f/s command is compatible
      Maximum space speed  15M-Min
      Transfer methodaxis screw + square rail X-axis rack+ square rail Y-axis rack+ square rai (Y-axis dual motor)
      Control System Macro system
      Inverter Southern Anhua inverter
      Rail modelS20/25 square rail (optional)
      Transmission system Rail+ oblique rack
      Z-axis transmission systemHigh precision ball screw

      A fixed wayPlate

      DimensionsDiferent length 1200mm wide 1400mm high 1600mm

      Total weightAbout 400 kg

      Body colorBlack red / blue white























      Applicable industries






















































      Longtai Laser is well-known as one of the largest and professional full-protective sheet fiber laser cutting machine manufacturers and suppliers in China. With a group of professional and effective personnel, we can offer you full-protective sheet fiber laser cutting machine at low price.











      Haven’t you decided which configuration yet?


      Don’t worry, we are there to advise you
